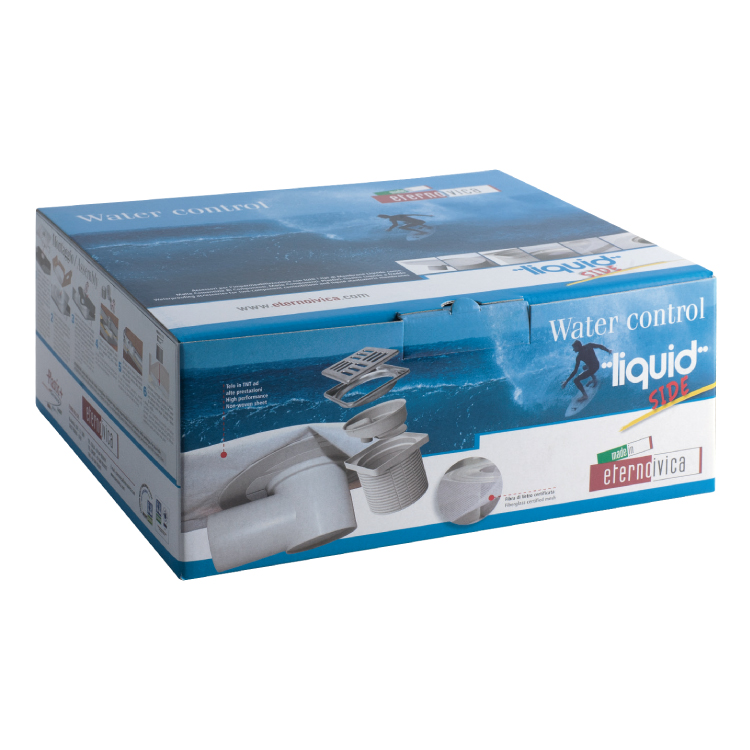

KIT liquid side telescopic with fiberglass mesh - diameter 50 mm
![KIT liquid side telescopic with fiberglass mesh - diameter 50 mm KIT liquid side telescopic with fiberglass mesh - diameter 50 mm](/uploads/images/products/574/original_A400022050_kit_laterale_FV-170a9785f89cb44631feb335a3b0a508.jpg)
- Stainless Steel Grating and Frame
- Anti-intrusion system diameter 50/75/82/90/100 mm
- Telescopic Extension H90 - H50 - H18
- Water drainage grooves
- “Non-stop water” internal grooves
- Upper and lower knurled flange to improve the anchoring of the liquid waterproofing layers
- High-performance certified Fibreglass mesh
- Vertical drain cover diameter 50/75/82/90/100 mm
- Side drain cover diameter 50/75/90 mm
- Sloping bottom to prevent water stagnation

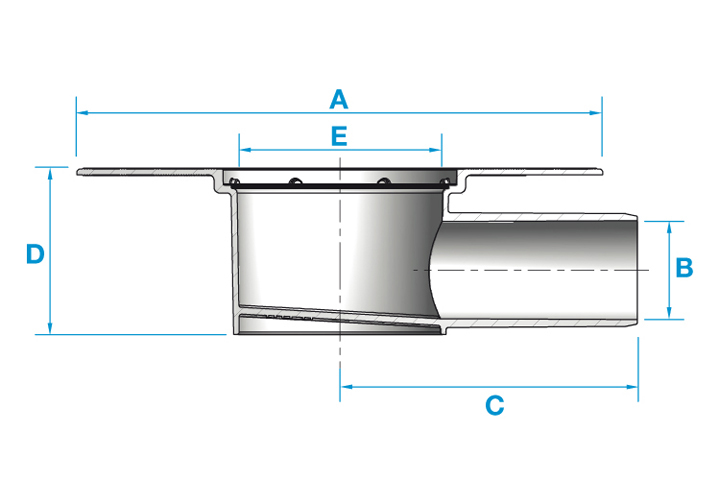

Type |
kit Ø 50 with Extension element H.90 mm, Anti-odour cap Ø 100 and inox Grating |
For pipes diameter | 50 mm |
A | 230 |
B | 49,5 |
C | 130 |
D | 70 |
E | 89,9 |
![KIT liquid side telescopic with fiberglass mesh - diameter 50 mm KIT liquid side telescopic with fiberglass mesh - diameter 50 mm](/uploads/images/contents/498/col6_disegno_laterale_telescopico_FV-82a49a330ee5b55fa16729f4f856a090.jpg)
Code | Type | Pcs (Box) | Pcs (Pallet) | |
---|---|---|---|---|
A400022050 | Kit liquid | 1 | 204 |
Specifications
MATERIALS | Polypropylene |
APPLICATIONS | Liquid waterproofing, cementitious bicomponent application with roll |
COMPATIBILITY | Oxidized bitumen, cold liquid membrane, two-component cement |
APPLICATIONS | Polyurethane and epoxy resins |
